These drawings cover Cherry Shaker, Navy Blue, Timber Shaker, Sand Pebble, Weathered Grey and Unfinished references. Use the item code to study the form, then confirm current specifications and clearances for your measured room.
Find your cabinet drawing
Search an item number or choose a cabinet type. Open the drawing to inspect it at full size.
8 matching drawing sheets

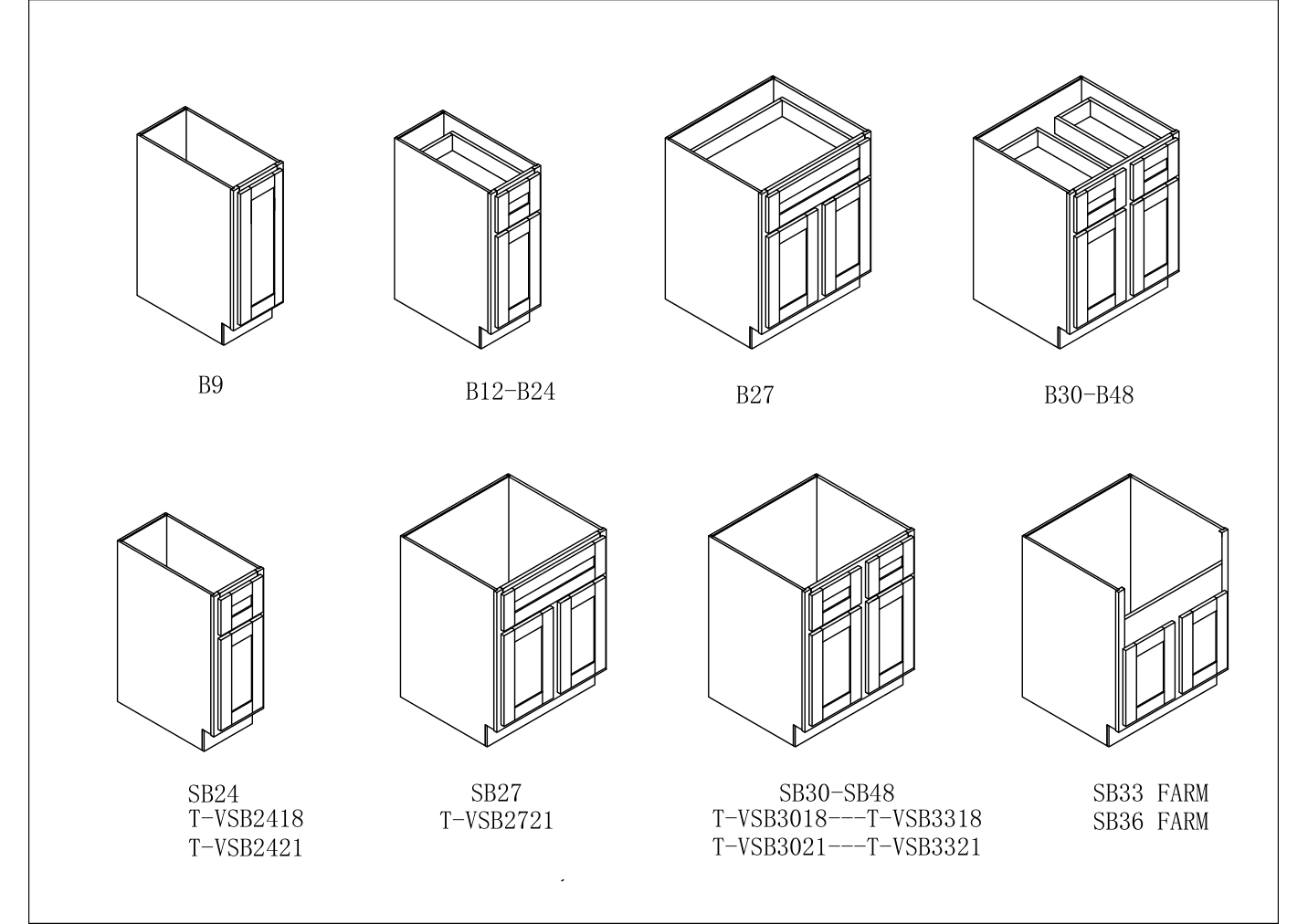

Base and sink cabinets
Open full-size drawing →
Item numbers on this drawing
B9 · B12 · B15 · B18 · B21 · B24 · B27 · B30 · B33 · B36 · B39 · B42 · B45 · B48 · SB24 · SB27 · SB30 · SB33 · SB36 · SB39 · SB42 · SB45 · SB48 · SB33 FARM · SB36 FARM · T-VSB2418 · T-VSB2421 · T-VSB2721 · T-VSB3018 · T-VSB3318 · T-VSB3021 · T-VSB3321
Use the drawing to imagine daily movement
A dimensioned cabinet image helps you compare door swings, drawer access and storage height before committing space to a piece. Begin with the things your family reaches for every day. Check that an open door will not block a walkway or collide with an appliance handle, then compare the drawing with a sketch of the actual room.
Drawings are especially useful when a cabinet looks similar to another at a glance. Look at the number of openings, the location of shelves and the proportions of each face. Bring questions about these details to the planning conversation while changes are still easy to make.
Supplier reference received September 7, 2026. SKU ranges describe the drawing sheet; they do not confirm current stock.
